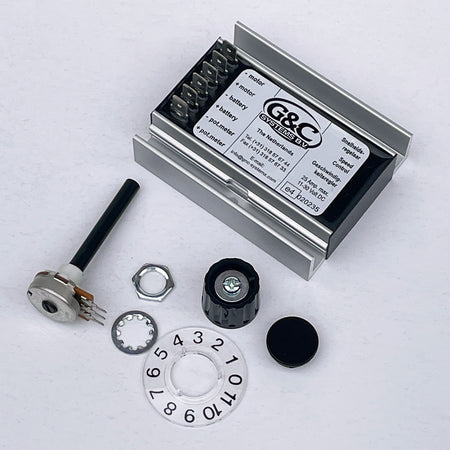

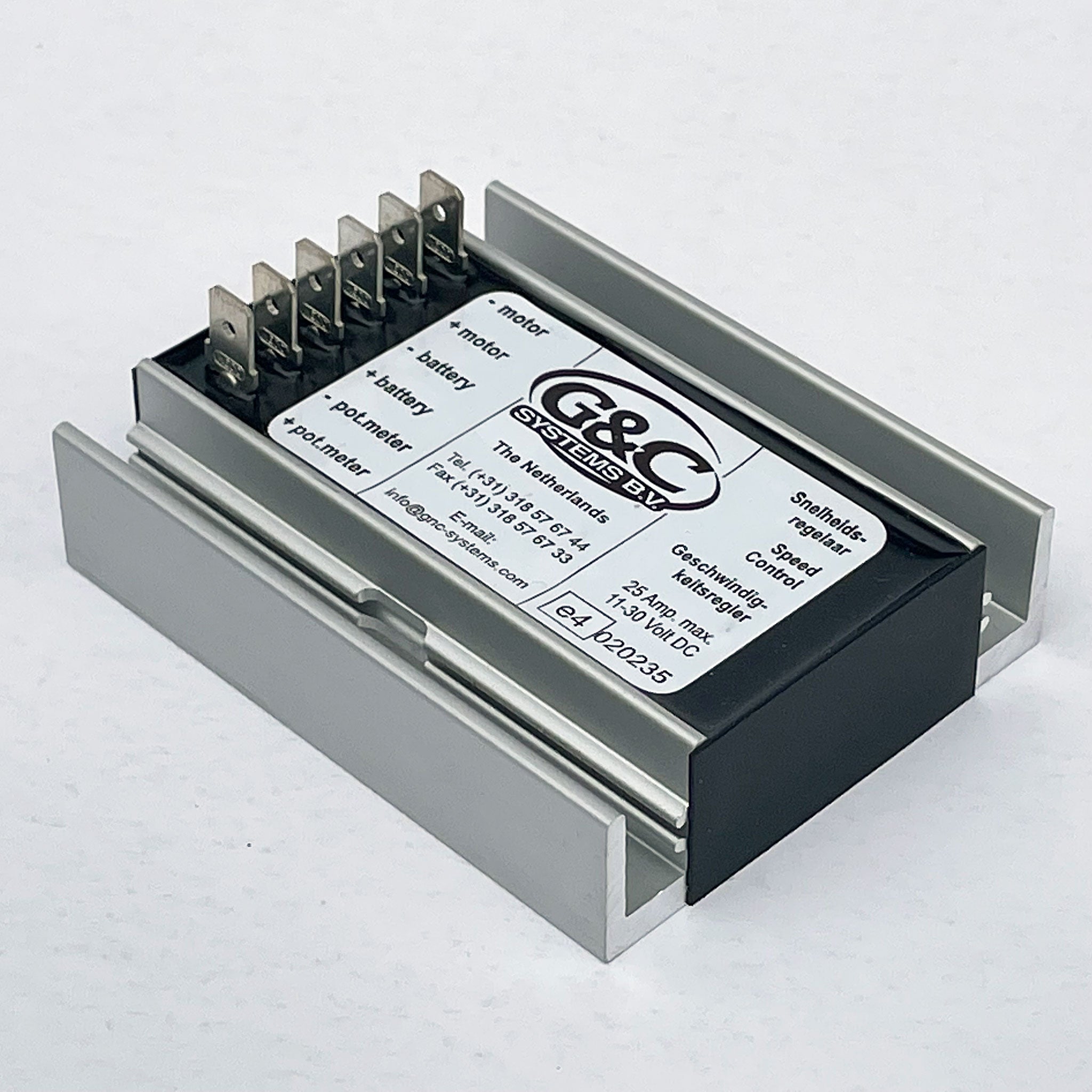

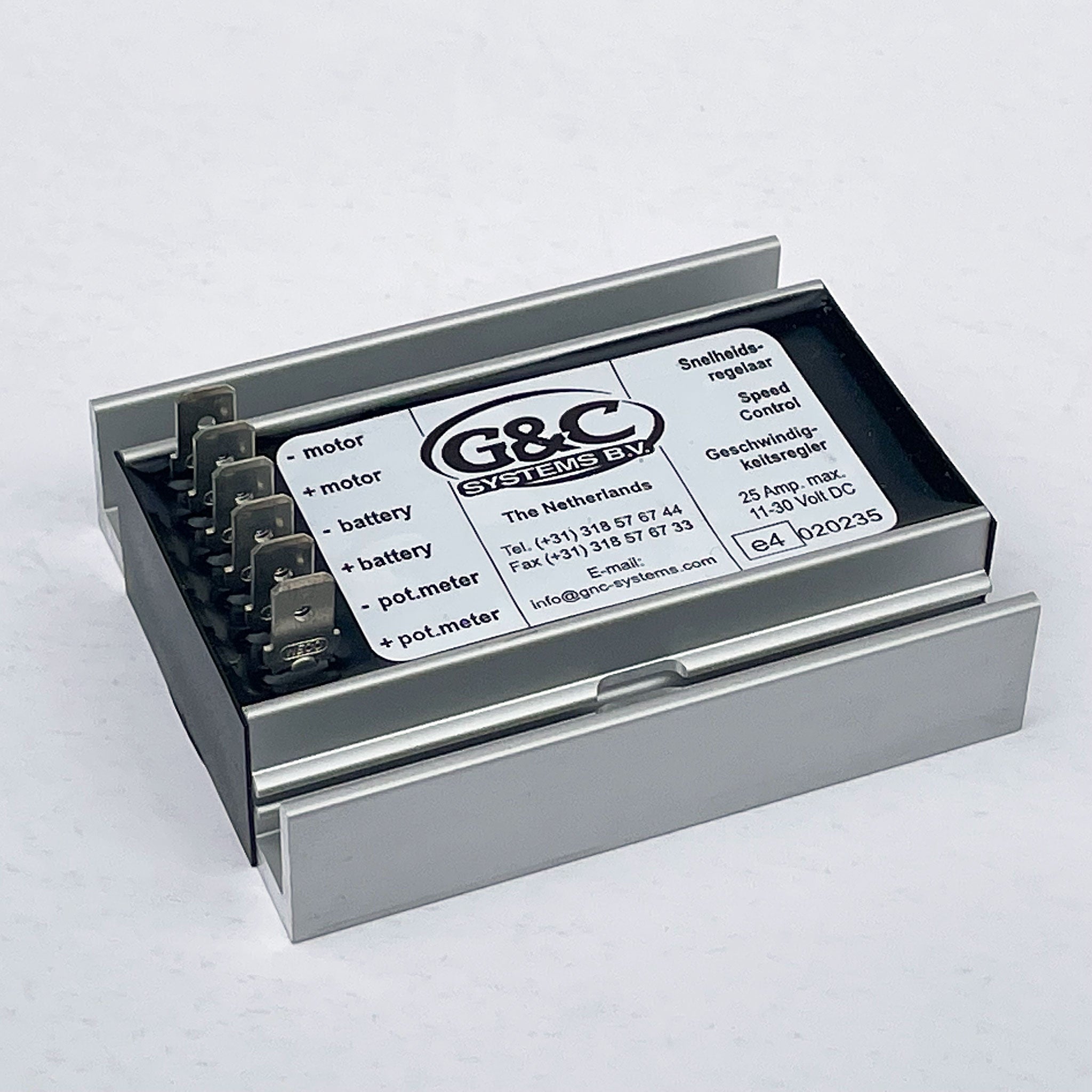

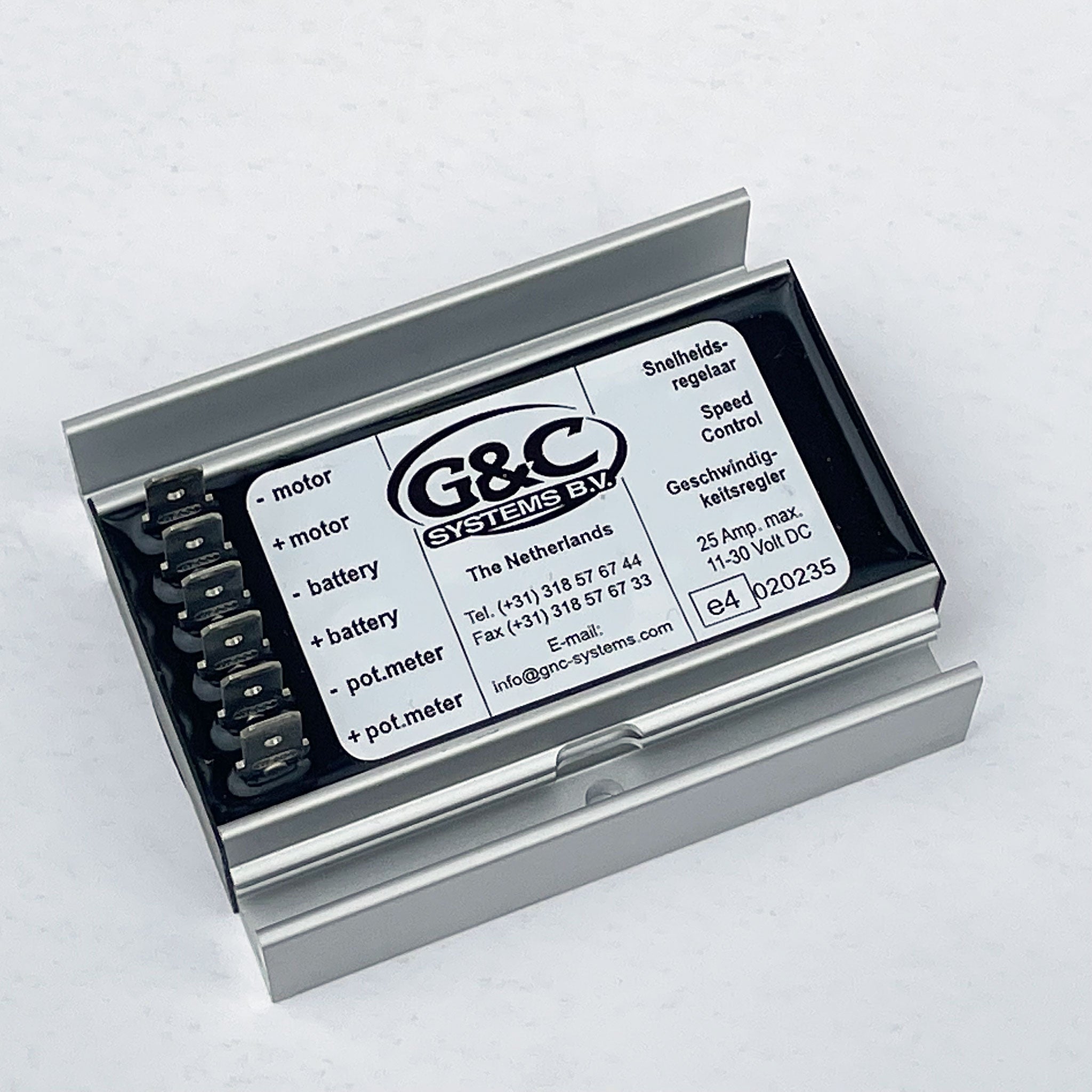

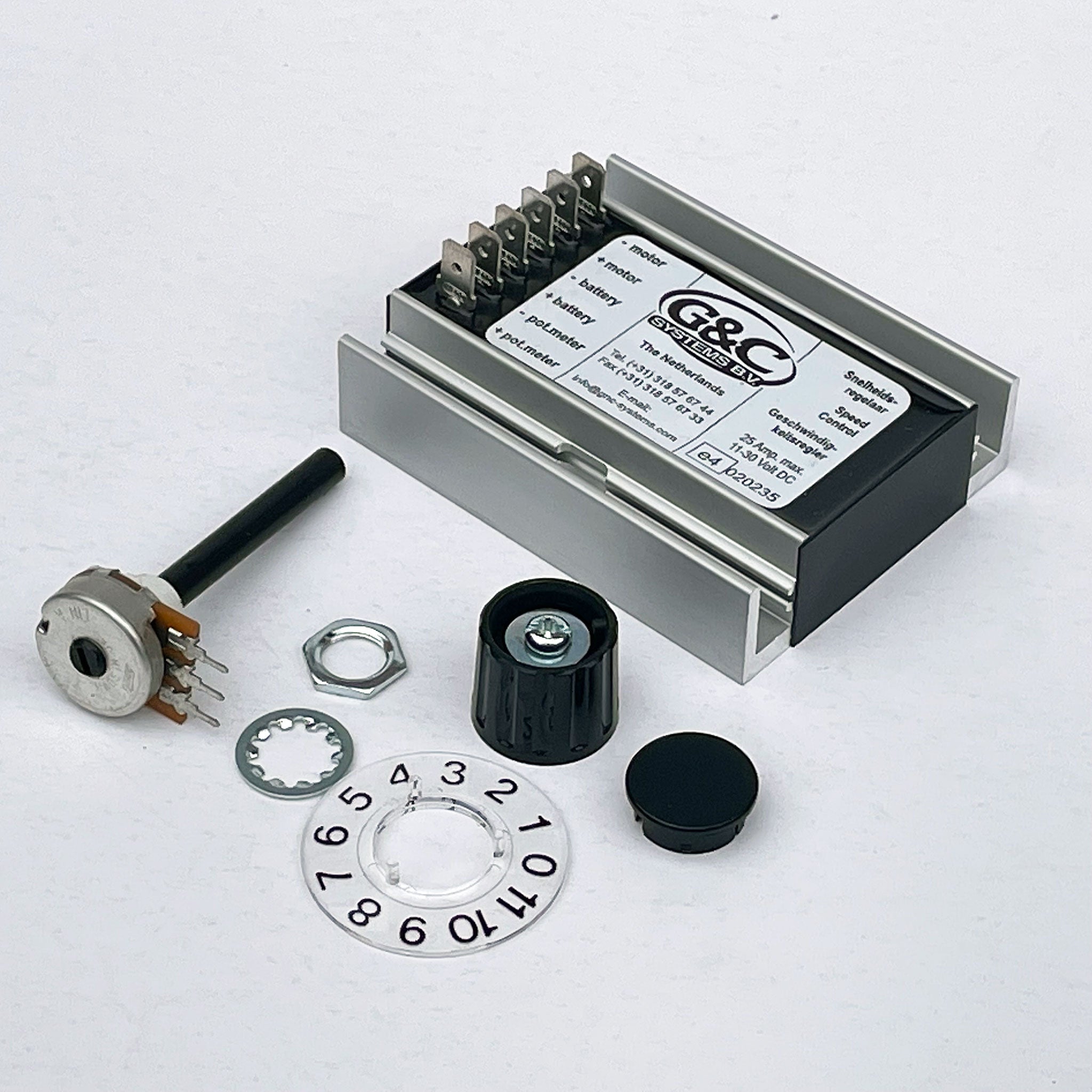

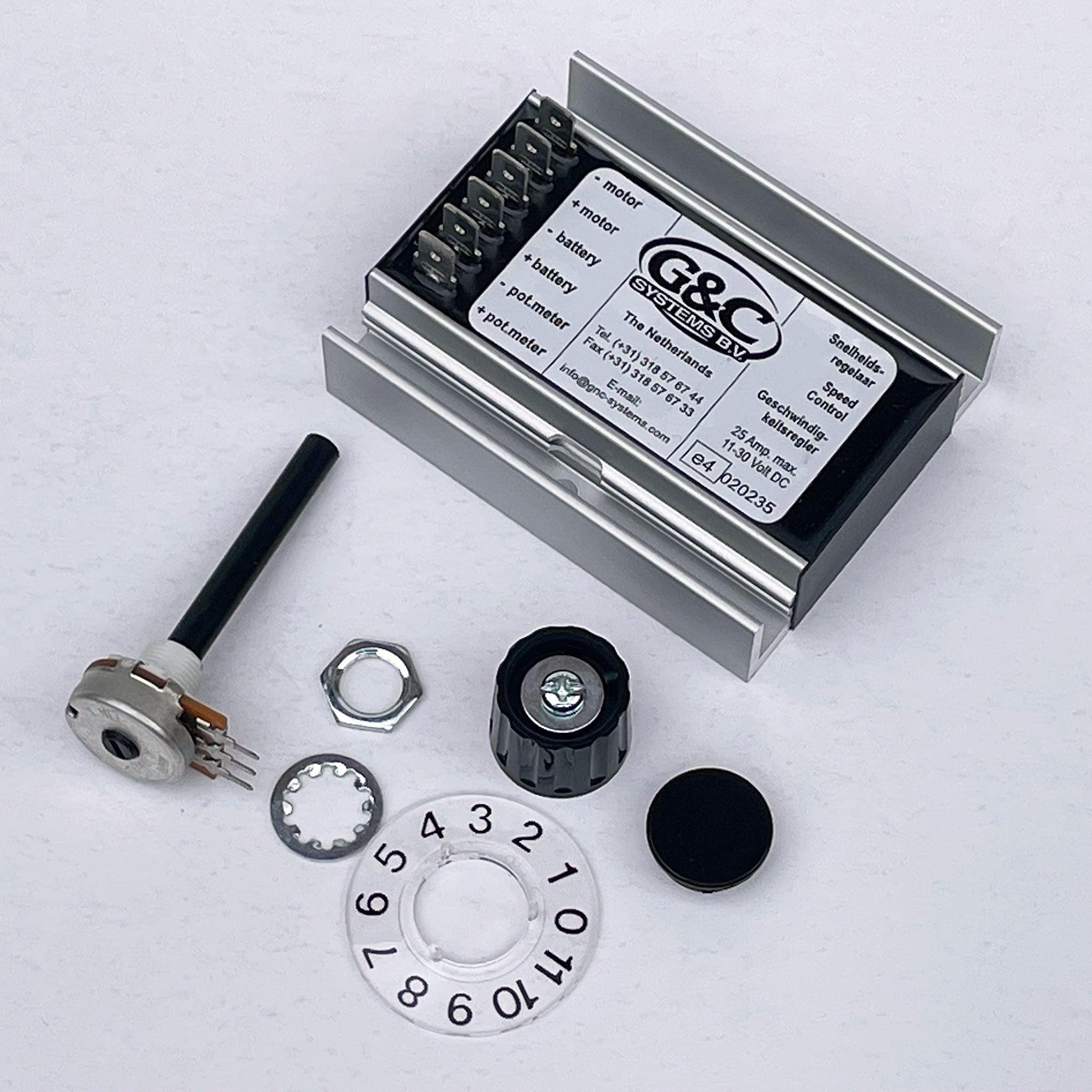

Speed Control Unit for Motorised Vents

Speed Control Unit for motorised vents

This Speed Control Unit designed for use with items such as our motorised van vents. The device is easy to operate and has 10 speed settings ranging from 0% to 100% of the rotation speed to help keep your van perfectly ventilated and cool by means of the regulation of the voltage.

Speed Control Unit Specification

• Controls van vent rotation speed.
• Water proof housing.
• Housing dimensions (L, W, H) 80 x 60 x 20mm
• Height including connectors 30mm
• Minimum input Voltage 11 VDC
• Maximum input Voltage 30 VDC
• Max. continuous output current 25 A
• Max. output current 30 A

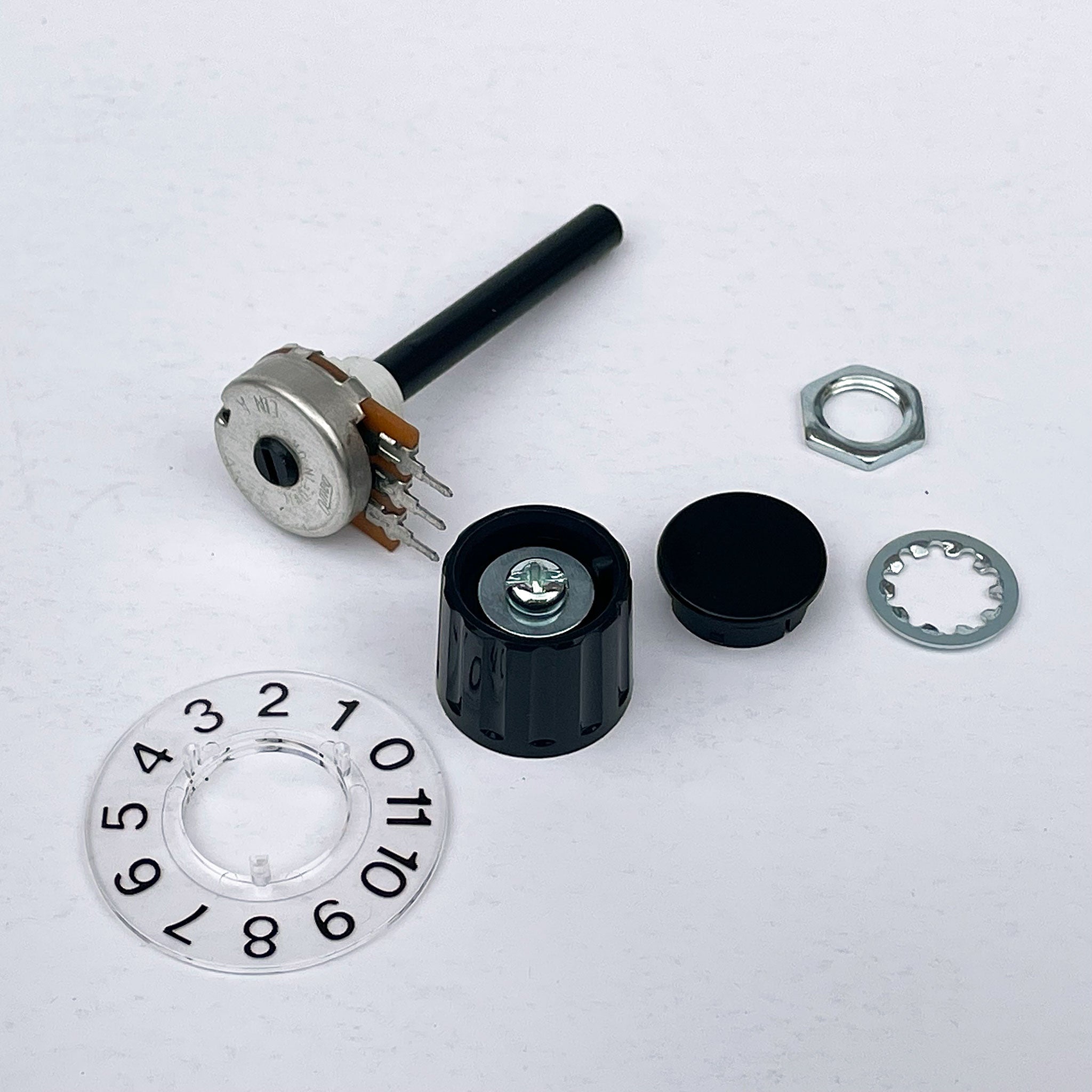

• Potentiometer 4 k 7
• Flat connectors 6.3mm
